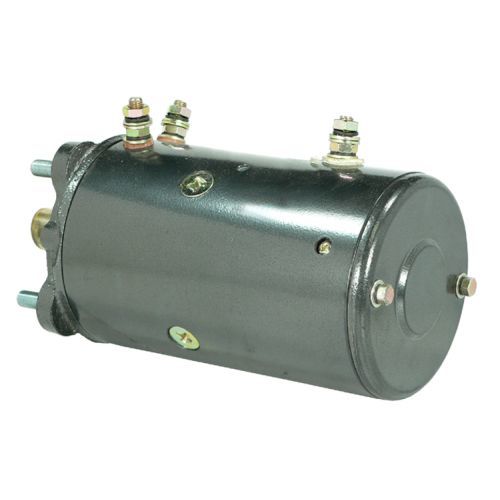

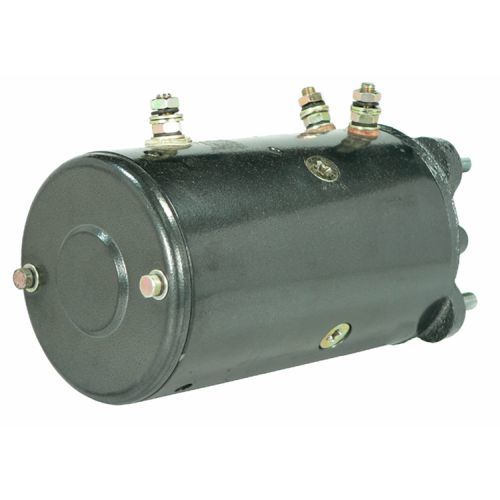

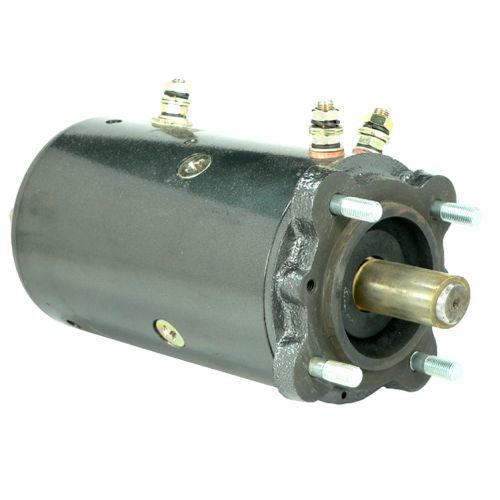

12V Winch Motor Reversible – Fits Braden, Ramsey & Tulsa Winch – Replaces 430-20036, 46-4214, MUR6202, 5687HD
$234.49 $264.97
Lester: 5687HD
Specifications
| Attribute | Details |
|---|---|
| Description | Winch Motor |
| Application | Braden, Pierce Sales, Ramsey & Tulsa Winch Motors |
| Current Type | DC |
| Voltage | 12 |
| Power | 3.58kW / 4.8HP |
| Rotation | Reversible |
| OD | 4.524in / 114.9mm |
| Shaft OD | 0.748in / 19mm |
| Length | 9.843in / 250mm |
| Terminal 1 Size | 5/16-24 |
| Terminal 2 Size | 5/16-24 |
| Terminal 3 Size | 5/16-24 |
| Shaft | Includes Keyway |
| Notes | Double Ball Bearing; Mounting Plate with (4) 3/8-24 Threaded Mounting Holes |
