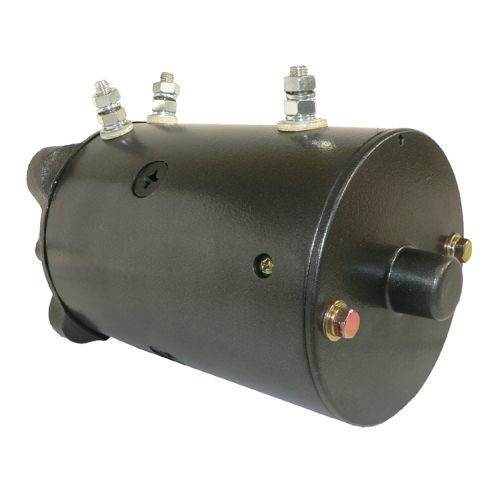

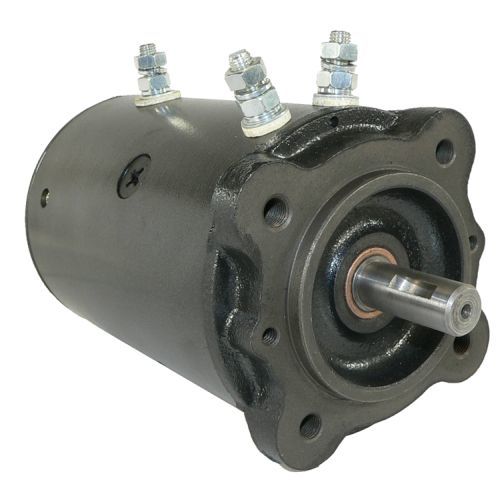

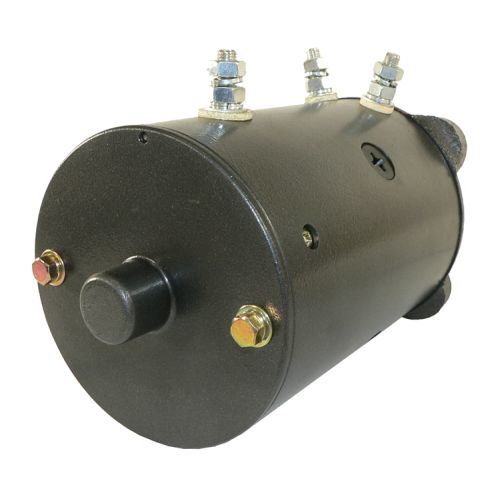

12V Winch Motor Reversible – Replaces 430-20030, 16-510, 16-700, 46-2097, MBJ4406, 10754
$263.65 $297.92
Lester: 10754
Specifications
| Attribute | Details |
|---|---|
| Description | Winch Motor |
| Application | – |
| Current Type | DC |
| Voltage | 12 |
| Power | 1.7kW / 2.28HP |
| Rotation | Reversible |
| OD | 4.524in / 114.9mm |
| Shaft OD | 0.622in / 15.8mm |
| Length | 9.311in / 236.5mm |
| Terminal 1 Size | 5/16-24 |
| Terminal 2 Size | 5/16-24 |
| Terminal 3 Size | 5/16-24 |
| Shaft | Includes Keyway |
| Notes | Mounting Plate Includes (4) 3/8-24 Threaded Mounting Holes; J&N Motor has 2 and 1 Terminal Configuration |
