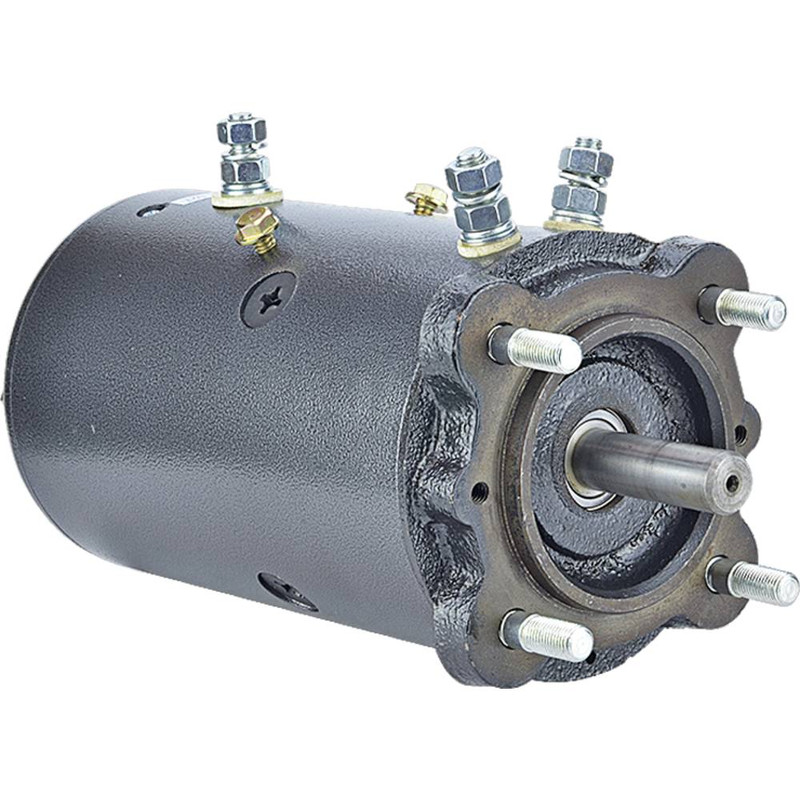

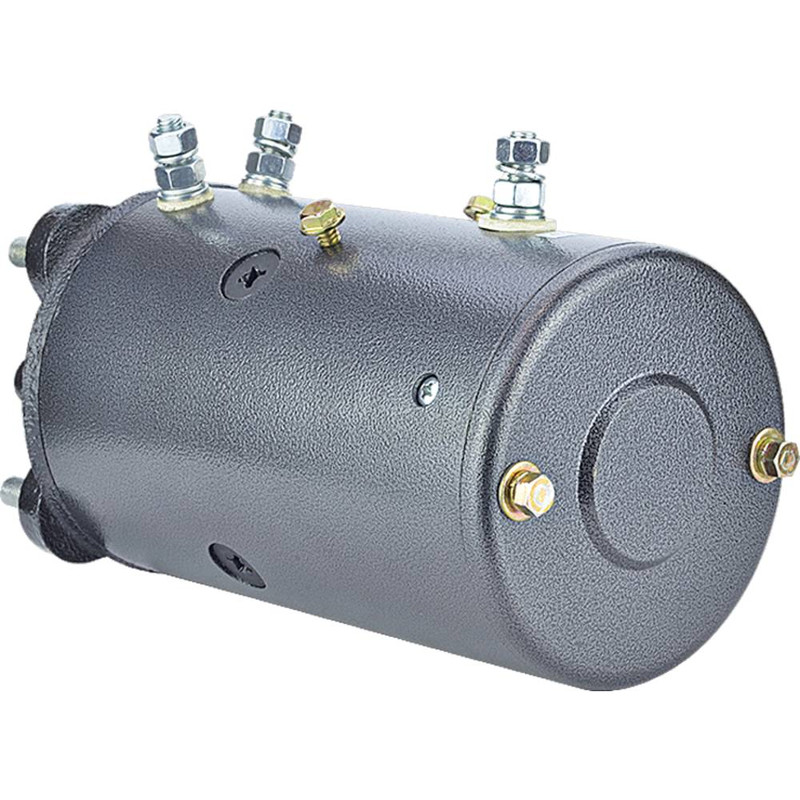

12V Winch Motor Reversible – Fits Western, Ruger, Redwood & Reliance – Replaces LRW0018, 430-22132
$244.86 $276.69
Specifications
| Attribute | Details |
|---|---|
| Description | Winch Motor |
| Application | Western Motor, Ruger, Redwood, & Reliance Applications |
| Current Type | DC |
| Power | 3.6kW / 4.82HP |
| Rotation | Reversible |
| OD | 4.508in / 114.5mm |
| Shaft OD | 0.622in / 15.8mm |
| Length | 9.764in / 248mm |
| Terminal 1 Size | 5/16-24 |
| Terminal 2 Size | 5/16-24 |
| Terminal 3 Size | 5/16-24 |
| Shaft | Accepts Woodruff Key |
| Notes | (4) 3/8-24 Threaded Studs At Drive End |
