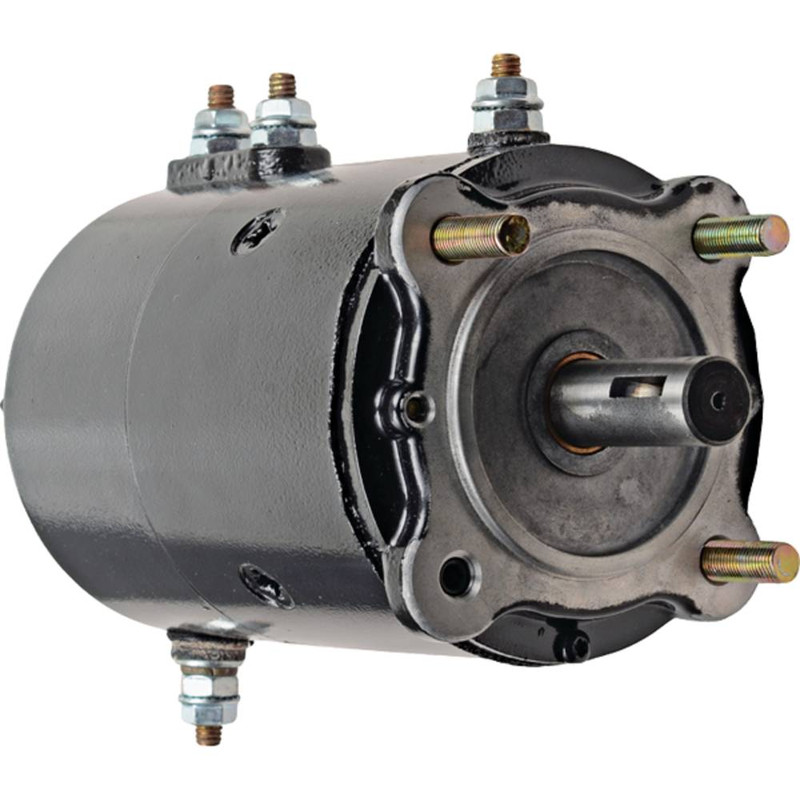

12V Winch Motor Reversible – Fits Ramsey Winch – Replaces PRL-MBJ6302, 458071
$379.94 $429.33
Specifications
| Attribute | Details |
|---|---|
| Description | Winch Motor |
| Application | Ramsey Winch Applications |
| Current Type | DC |
| Voltage | 12 |
| Power | 2.54kW / 3.4HP |
| Number of Fields | 4 |
| Field Type | Series |
| Rotation | Reversible |
| OD | 4.5in / 114.3mm |
| Shaft OD | 0.748in / 19mm |
| Length | 8.248in / 209.5mm |
| Terminal 1 Size | 5/16-18 |
| Terminal 2 Size | 5/16-18 |
| Terminal 3 Size | 5/16-18 |
| Terminal 4 Size | 5/16-18 |
| Shaft | Includes Keyway |
| Notes | Includes (3) 3/8-24 Mounting Bolts Attached; 4th Hole is Filled With a Set Screw; Updated Design from MBJ6301; Bearing in CE Housing Instead of Bushing; New Brush Holder Design |
