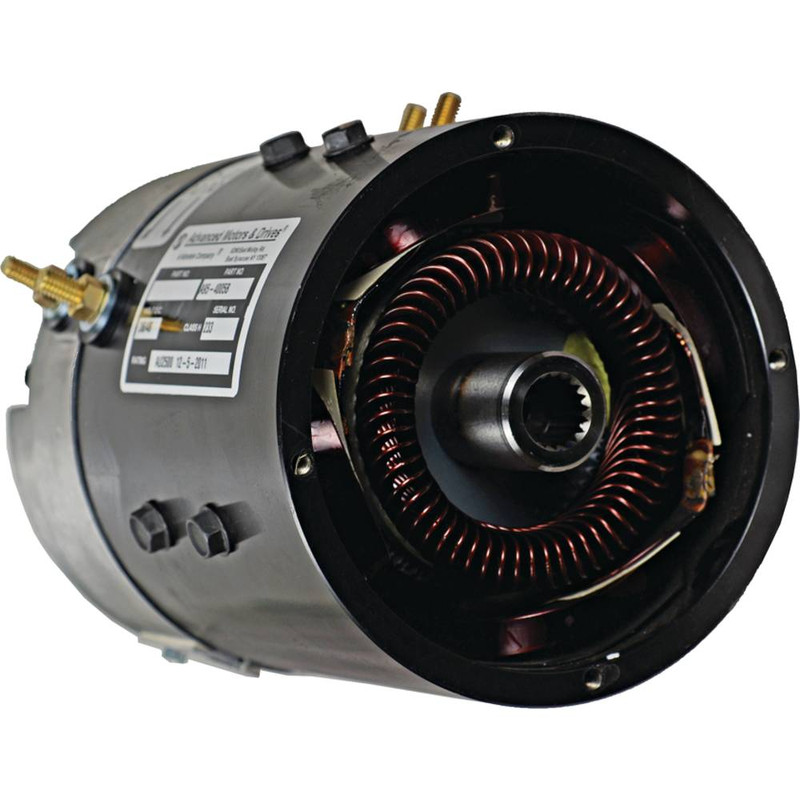

A95-4005BMX 36/48V DC Motor – 2.47 HP, 2800 RPM, Reversible, 19 Spline Shaft – Replaces A95-4005
Original price was: $1,539.40.$1,428.40Current price is: $1,428.40. $1,614.09
Specifications
| Specification | Value |
|---|---|
| Voltage | 36/48 |
| Power | 1.840 kW |
| HP | 2.467 |
| RPM | 2800 |
| Rotation Direction | Reversible |
| OD | 169 mm / 6.654″ |
| Shaft OD | 1.354″ / 34.400 mm |
| Length | 228 mm / 8.976″ |
| Terminal 2 Size | 5/16-18 |
| Terminal 3 Size | 5/16-18 |
| Terminal 4 Size | 5/16-18 |
| Terminal 5 Size | 5/16-18 |
| Shaft | 19 Internal Spline |
| Current Type | DC |
| Number of Fields | 4 |
