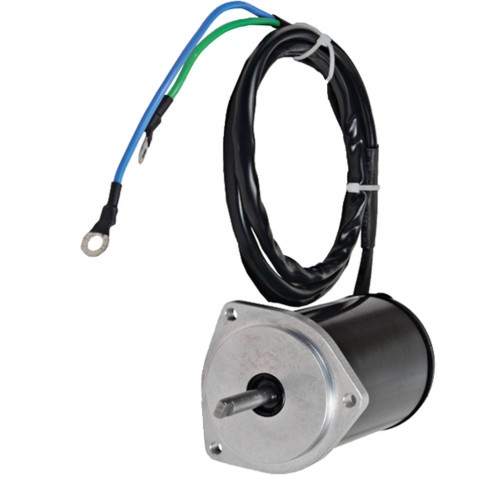

12V Tilt Trim Motor Yamaha Marine – Fits Yamaha Outboard – Replaces 430-22090, 62Y43880-01, 62Y43880-02, 69W43880-09, C53-43880-00, CS3-43880-00, 10834
$178.32 $201.50
Lester: 10834
Specifications
| Specification | Value |
|---|---|
| Description | Tilt/Trim Motor |
| Application | 1995–2003 Yamaha Marine Applications |
| Current Type | DC |
| Voltage | 12 |
| Rotation | Reversible |
| OD | 2.504 in / 63.6 mm |
| Shaft OD | 0.315 in / 8 mm |
| Length | 6.004 in / 152.5 mm |
| Shaft | 35.5 mm L, 4 mm W x 5 mm L Tang |
| Terminal 1 Size | Eyelet |
| Terminal 2 Size | Eyelet |
