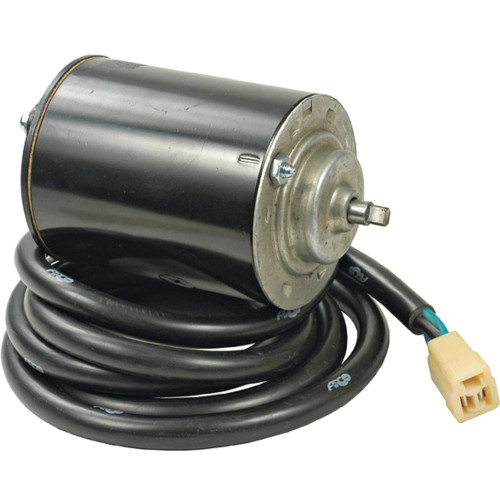

12V Tilt Trim Motor OMC Marine – Fits OMC Outboard Motors – Replaces 430-20010, 8M6007541, 0172588, 0173944
$213.36 $241.10
Lester: 10800
Specifications
| Specifications | Values |
|---|---|
| Description | Tilt/Trim Motor |
| Application | OMC Outboard Motors |
| Current Type | DC |
| Voltage | 12 |
| Rotation | Reversible |
| OD | 2.807 in / 71.3 mm |
| Shaft OD | 0.311 in / 7.9 mm |
| Length | 5.303 in / 134.7 mm |
| Terminal 1 Size | Wire |
| Terminal 2 Size | Wire |
| Terminal 3 Size | Wire |
| Shaft | 6.25 mm x 3.9 mm Tang on Shaft |
| Notes | Includes 3-1/2 Foot Wire Harness With 3 Female Spade Terminal Plug and Mounting Gasket |
