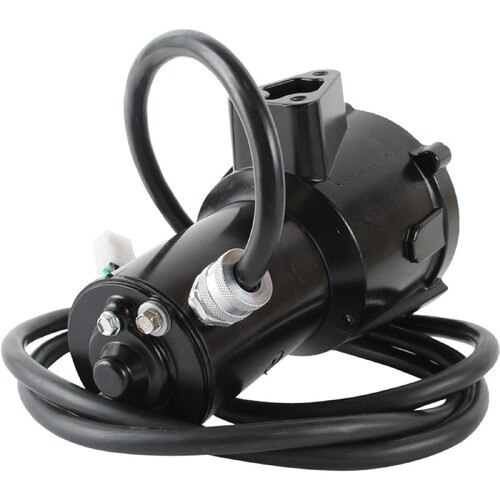

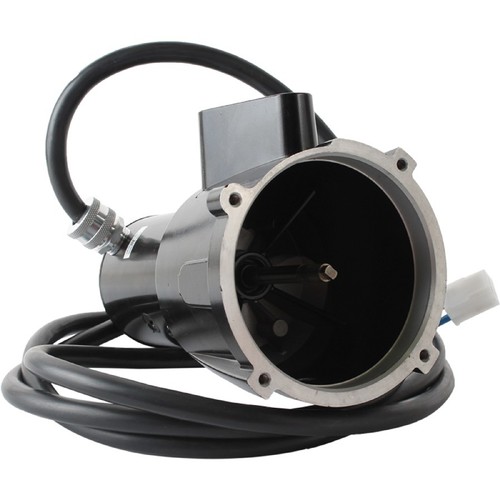

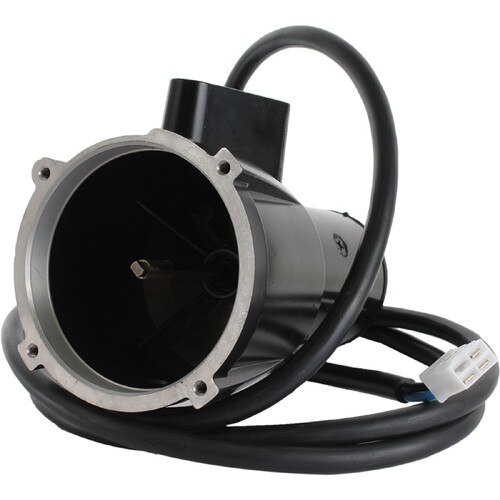

12V Tilt Trim Motor OMC Marine - Fits Evinrude Johnson Outboards - Replaces 430-20008, 802511, 8M6007528, 0172655, 0172847, 0172850

12V Tilt Trim Motor OMC Marine – Fits Evinrude Johnson Outboards – Replaces 430-20008, 802511, 8M6007528, 0172655, 0172847, 0172850

Name: 12V Tilt Trim Motor OMC Marine - Fits Evinrude Johnson Outboards - Replaces 430-20008, 802511, 8M6007528, 0172655, 0172847, 0172850
SKU: 10709
Availability: InStock

$347.46 $392.63

Lester: 10801

Category: Tilt/ Trim Motors Tag: DC

Additional information

Weight	2.65 kg
Dimensions	27 × 17 × 12 cm

Specifications

Specification	Value
Description	Tilt/Trim Motor
Application	OMC Marine Applications
Current Type	DC
Voltage	12
Rotation	Reversible
OD	2.803 in / 71.2 mm
Shaft OD	0.311 in / 7.9 mm
Length	7.917 in / 201.1 mm
Terminal 1 Size	Wire
Terminal 2 Size	Wire
Terminal 3 Size	Wire
Shaft	Tanged Shaft
Notes	Includes 6 Foot Long 3-Wire Harness With 3 Blade Plug and Reservoir

Part Number & Interchanges

Brand	Part Numbers
Arrowhead	TRM0016
EMP	4-6767-1
J&N Electrical Products	430-20008
JANNCO	430-20008R
Lester	10801
Mercury Marine	802511, 8M6007528
OMC Outboard Marine Corp	0172655, 0172847, 0172850, 0173596, 172655, 172847, 172850, 173596
Prestolite	40-312, 40-355, 40-374, 40-379, ESQ4006, ESQ4007-1, ESQ4009S, HYB5001, HYB6005
Sierra Marine	18-6767-1

Application

Make	Model	Engine	Year(s)
Evinrude Johnson	115E	—	1976, 1977
Evinrude Johnson	135E	—	1974, 1975
Evinrude Johnson	85E	—	1976, 1977
Evinrude Johnson	E100	—	1979
Evinrude Johnson	E100ML	—	1980
Evinrude Johnson	E100STL	—	1988
Evinrude Johnson	E100TL	—	1980
Evinrude Johnson	E100TX	—	1980
Evinrude Johnson	E100WML	—	1984–1986
Evinrude Johnson	E100WTL	—	1984–1988
Evinrude Johnson	E100WTX	—	1986–1988
Evinrude Johnson	E110ML	—	1986–1988
Evinrude Johnson	E110TL	—	1986–1988
Evinrude Johnson	E110TX	—	1989
Evinrude Johnson	E115	—	1973–1974
Evinrude Johnson	E115	—	1975–1977
Evinrude Johnson	E115	—	1978–1979
Evinrude Johnson	E115ML	—	1980–1985
Evinrude Johnson	E115TL	—	1980–1985
Evinrude Johnson	E115TX	—	1980–1984
Evinrude Johnson	E135	—	1973–1974
Evinrude Johnson	E135	—	1975–1976
Evinrude Johnson	E140	—	1978–1979
Evinrude Johnson	E140ML	—	1980–1983
Evinrude Johnson	E140TL	—	1984
Evinrude Johnson	E140TRL	—	1980–1983
Evinrude Johnson	E140TRX	—	1980–1983
Evinrude Johnson	E140TX	—	1984
