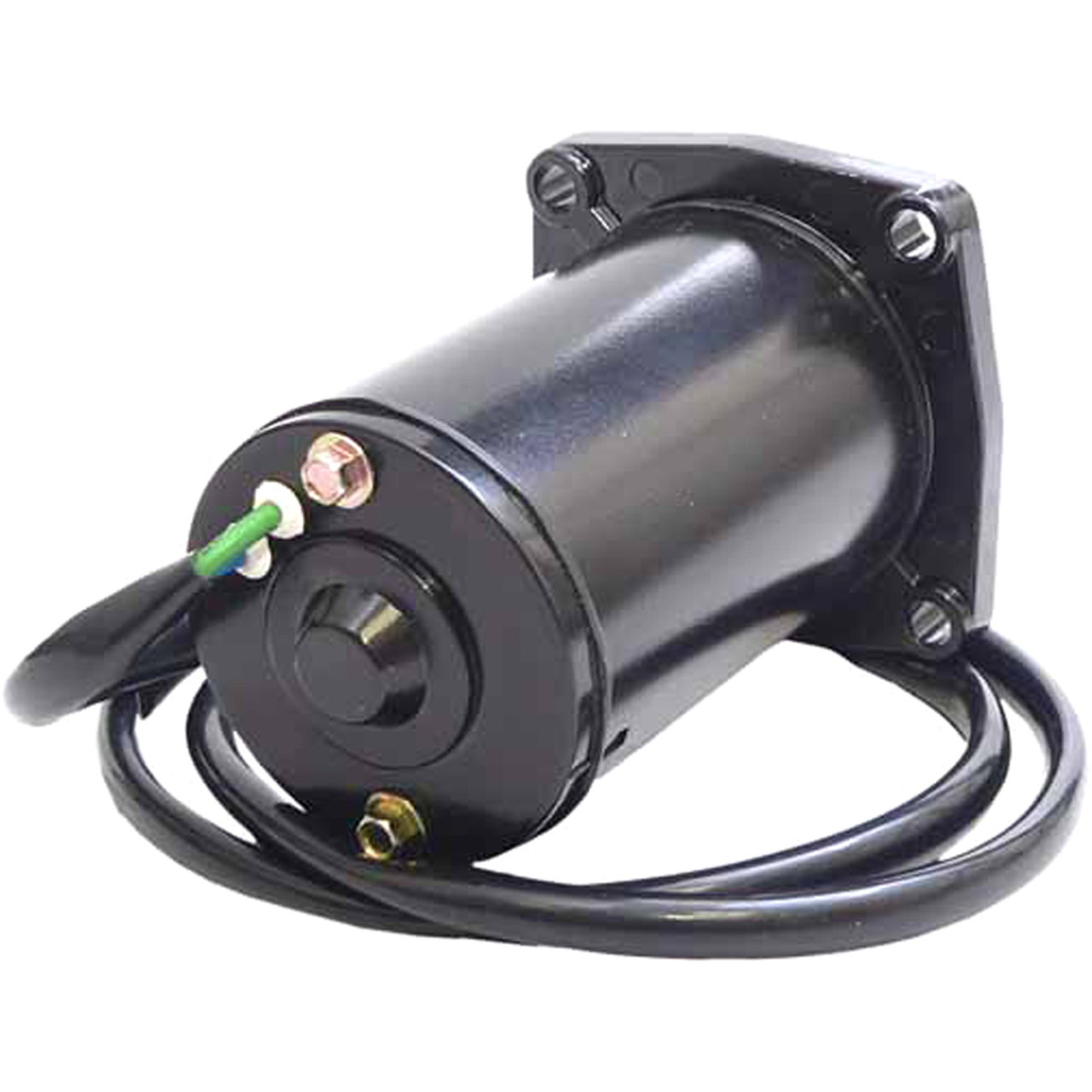

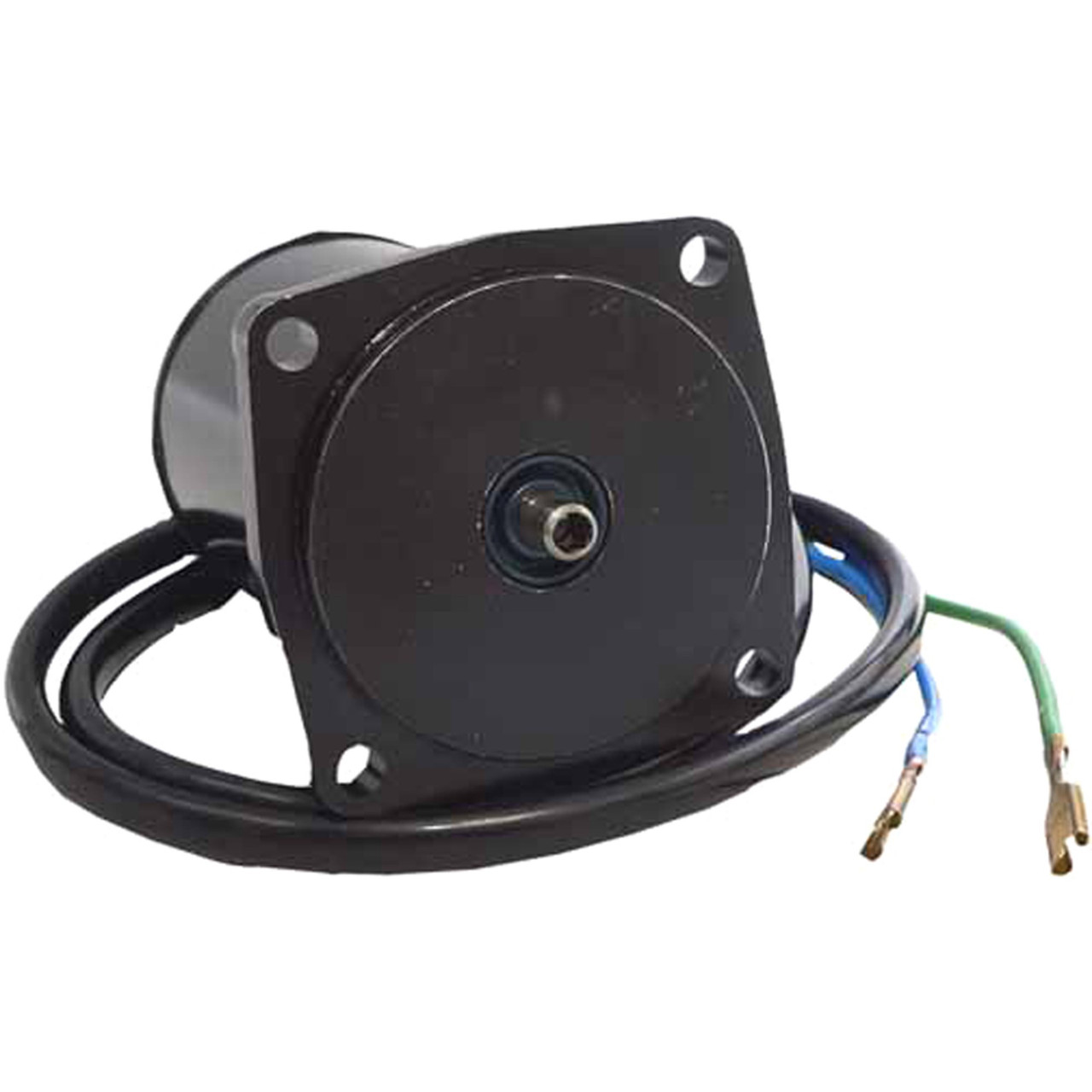

12V Tilt Trim Motor OMC Marine – Fits Honda Marine – Replaces 430-22024, 36120-ZV5-821, 8M6007526, 0435532, 18-6280
$148.26 $167.53
Lester: 10811, 10811B
- Specifications
- Part Number & Interchanges
- Applications (Evinrude / Johnson)
- Applications (Honda Marine)
Specifications
| Specification | Value |
|---|---|
| Description | Tilt/Trim Motor |
| Application | Honda Marine Applications |
| Current Type | DC |
| Voltage | 12 |
| Rotation | Reversible |
| OD | 2.52 in / 64 mm |
| Shaft OD | 0.315 in / 8 mm |
| Length | 4.882 in / 124 mm |
| Terminal 1 Size | Wire |
| Terminal 2 Size | Wire |
| Shaft | 5 mm Female Hex |
| Notes | 2-Wire Configuration; Female Spade Terminals; (4) 7 mm Unthreaded Mounting Holes |
