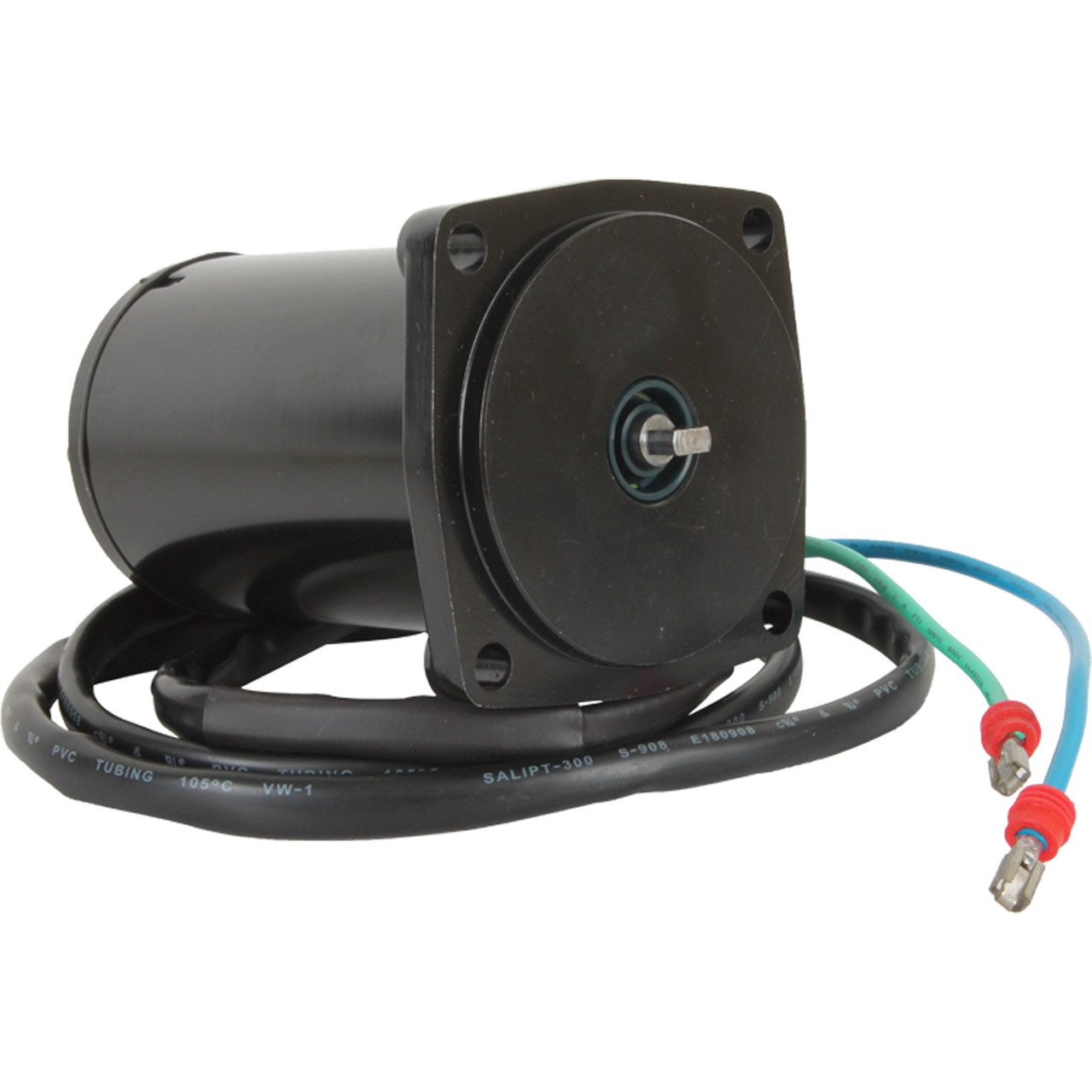

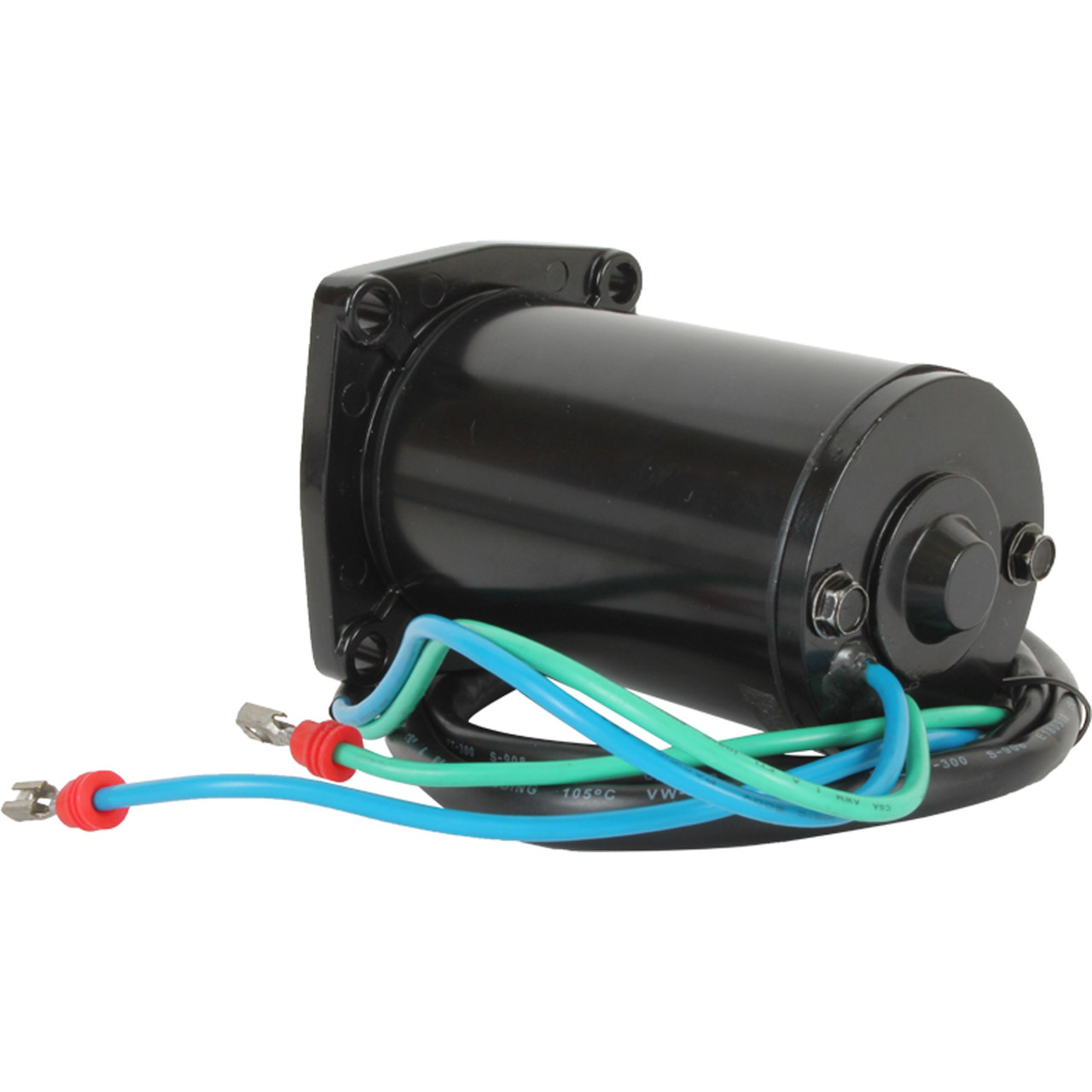

12V Tilt Trim Motor Evinrude Johnson – Fits 60-130HP ETEC Models (2005–2018) – Replaces 430-22099, 5005756, 5006319, 5007776
$187.19 $211.52
Specifications
| Specification | Value |
|---|---|
| Description | Tilt/Trim Motor |
| Application | Evinrude ETEC Outboard Engines (70–130 HP, 2005–2009) |
| Current Type | DC |
| Voltage | 12 |
| Rotation | Reversible |
| OD | 2.841 in / 72.15 mm |
| Shaft OD | 0.315 in / 8 mm |
| Length | 4.449 in / 113 mm |
| Terminal 1 Size | #12 Female WeatherPak |
| Terminal 2 Size | #12 Female WeatherPak |
| Shaft | 4mm x 8mm Drive Tang |
| Notes | (4) 7mm Mounting Holes; 69.8mm Register; (2) 51″ Control Cables |
