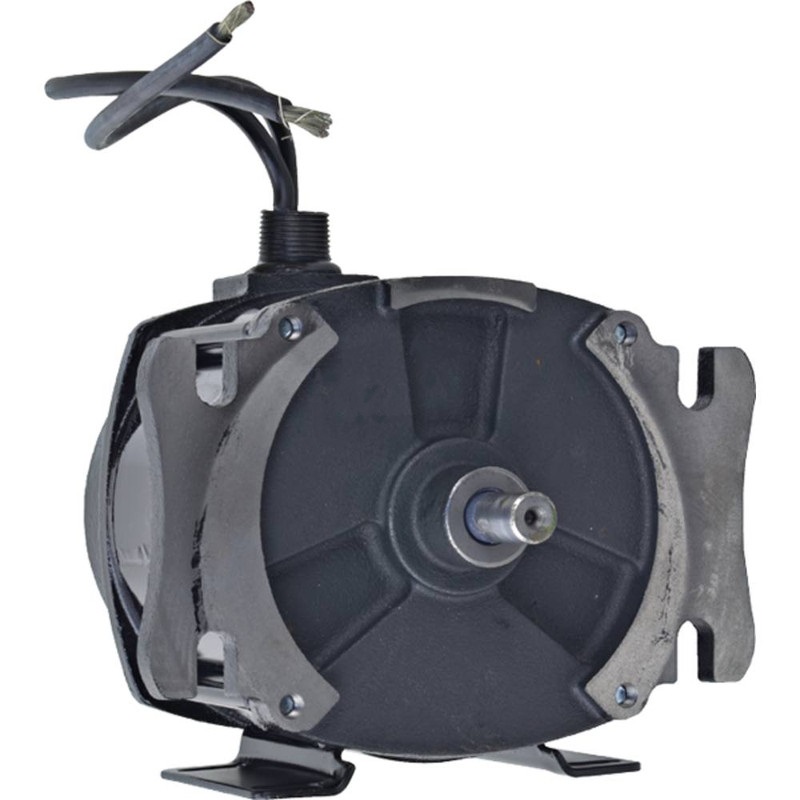

24V Reel Motor – Fits Hannay Reel & Fire Truck Applications – Replaces SCO-P56SX223, 9915.0113, P56SX223
$679.85 $768.23
Specifications
| Attribute | Details |
|---|---|
| Description | Reel Motor |
| Application | Firetruck Applications |
| Current Type | DC |
| Voltage | 24 |
| Power | 0.37kW / 0.5HP |
| Amps | 26 |
| RPM | 650 |
| OD | 3.85in / 97.8mm |
| Shaft OD | 0.63in / 16mm |
| Length | 8.78in / 223mm |
| Terminal 1 Size | Wire |
| Terminal 2 Size | Wire |
| Shaft | Woodruff Key |
