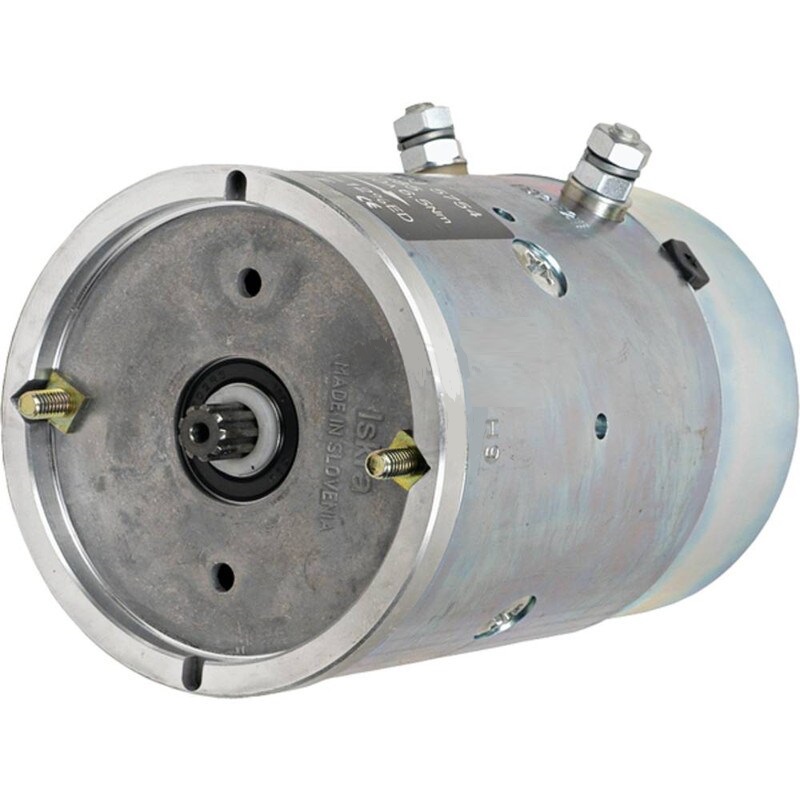

24V Hydraulic Motor CW – Fits SPX Fluid Power & Fenner Applications – Replaces MAH-MM80, 1792AC, 11.212.387, AMJ5754
$1,015.55 $1,147.57
Available on backorder
Specifications
| Specification | Value |
|---|---|
| Description | Hydraulic Motor |
| Application | SPX Fluid Power & Fenner Applications |
| Current Type | DC |
| Voltage | 24 |
| Power | 2.05 kW / 2.75 HP |
| Amps | 140 |
| RPM | 3000 |
| Rotation | CW |
| OD | 4.488 in / 114 mm |
| Shaft OD | 0.472 in / 12 mm |
| Length | 7.559 in / 192 mm |
| Terminal 1 Size | 5/16-24 |
| Terminal 2 Size | 5/16-24 |
| Shaft | 9-Spline |
