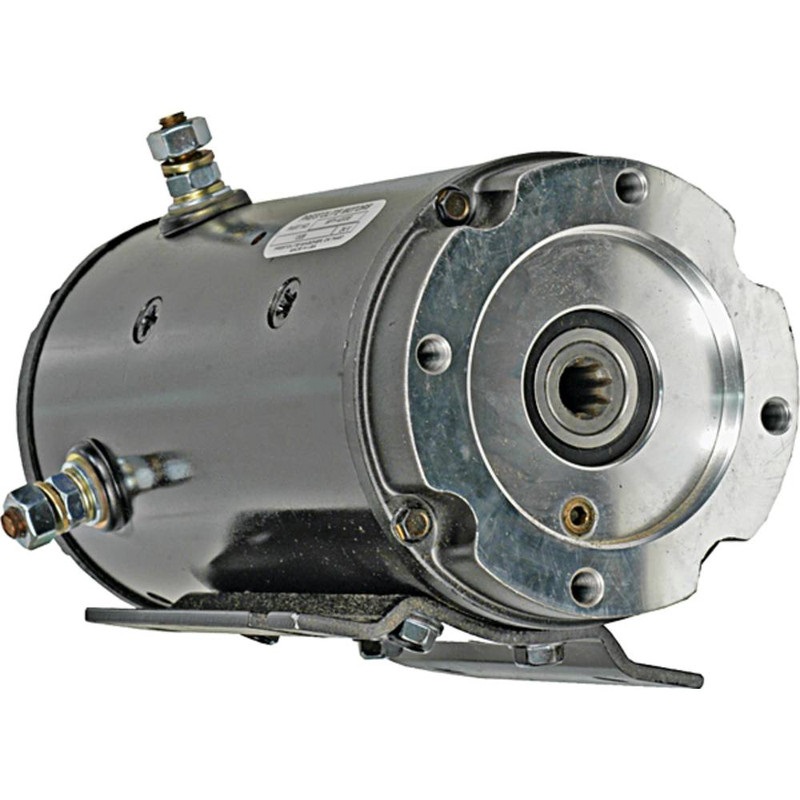

24V Hydraulic Motor – Fits Caterpillar & J.S. Barnes – Replaces PRL-MFY4203S, 117-3915, 396-2575
$1,351.82 $1,527.56
Specifications
| Attribute | Details |
|---|---|
| Description | Hydraulic Motor |
| Application | Steering Assist Motor for Caterpillar & J.S. Barnes Applications |
| Current Type | DC |
| Voltage | 24 |
| Power | 5.29kW / 7.09HP |
| Number of Fields | 4 |
| Field Type | Series |
| Rotation | CW |
| OD | 5in / 127mm |
| Shaft OD | 0.984in / 25mm |
| Length | 10.315in / 262mm |
| Terminal 1 Size | 3/8-16 |
| Terminal 2 Size | 3/8-16 |
| Shaft | 9 Internal Spline |
| Notes | Mounting Holes (4) 3/8-24; 107mm Bolt Circle |
