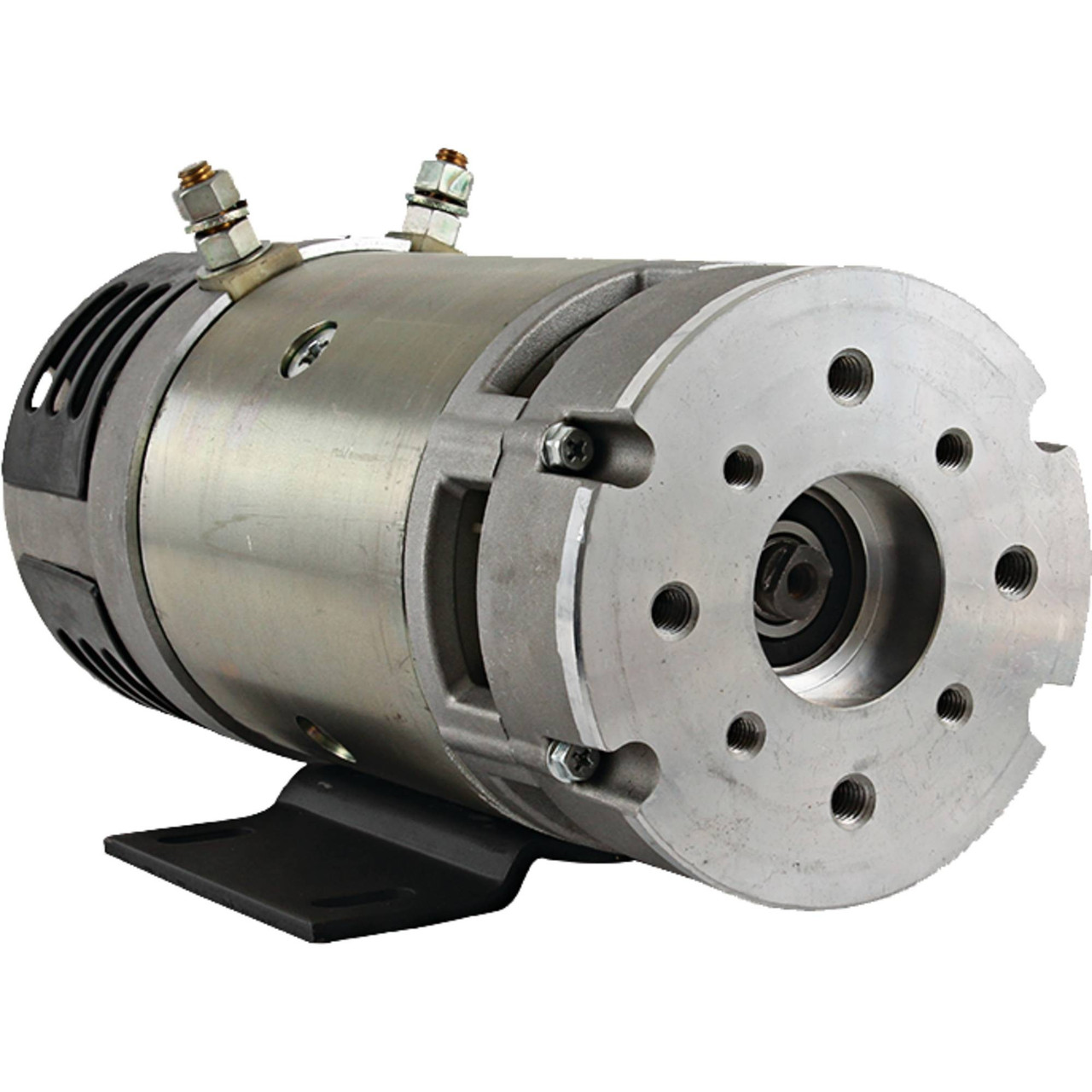

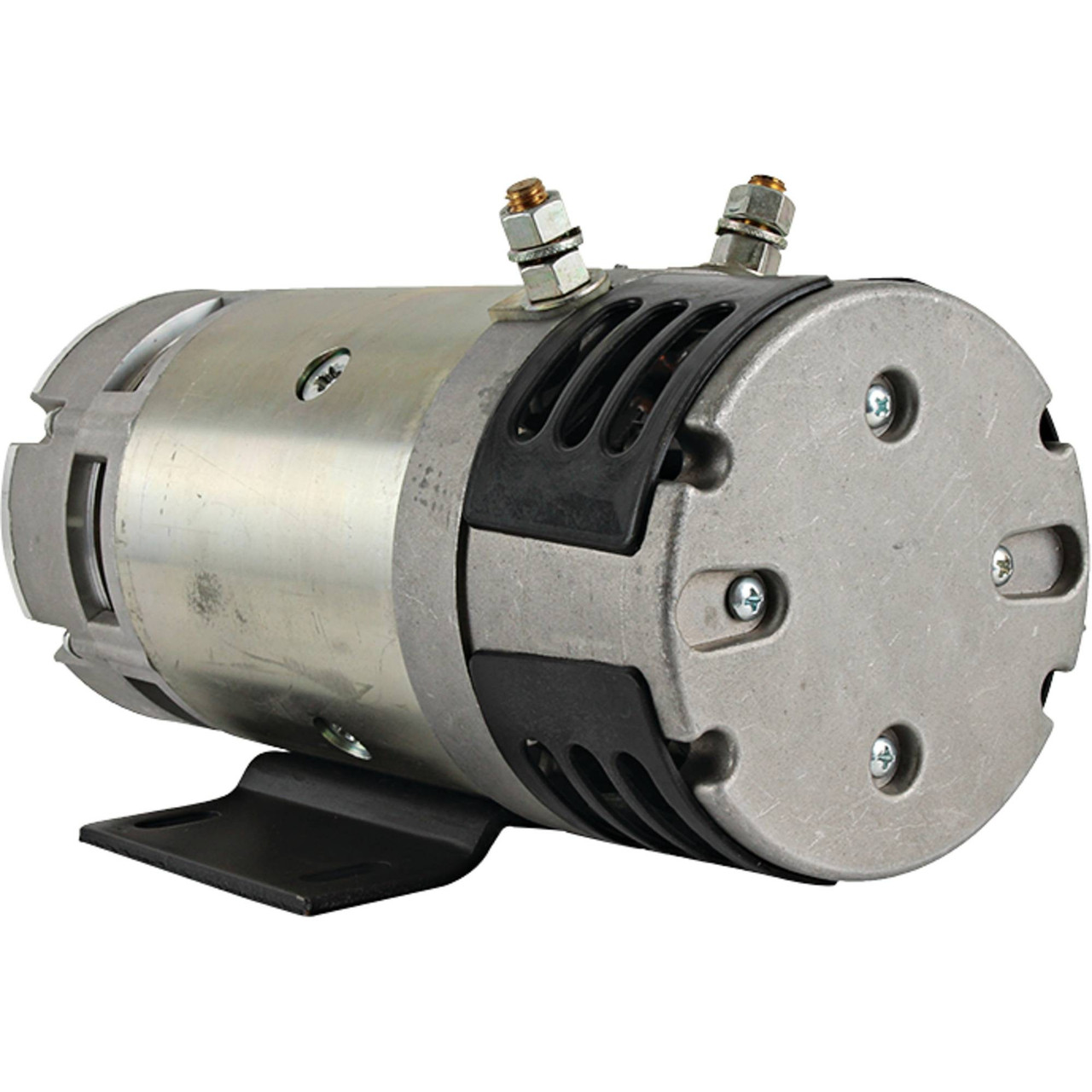

24V Hydraulic Motor CW – Fits Haldex-Barnes, Savery & Skyjack – Replaces 430-29015, 123477, 11.216.130, AMK4635, IM0284, MM288
$457.46 $516.93
Specifications
| Specification | Value |
|---|---|
| Description | Hydraulic Motor |
| Application | Haldex-Barnes, Savery, & Skyjack Applications |
| Current Type | DC |
| Voltage | 24 |
| Power | 3 kW / 4.02 HP |
| Rotation | CW |
| OD | 4.921 in / 125 mm |
| Shaft OD | 0.669 in / 17 mm |
| Length | 11.102 in / 282 mm |
| Terminal 1 Size | 3/8-16 |
| Terminal 2 Size | 3/8-16 |
| Shaft | 11mm W x 3.5mm L Tang, 1/4-20 Threaded |
