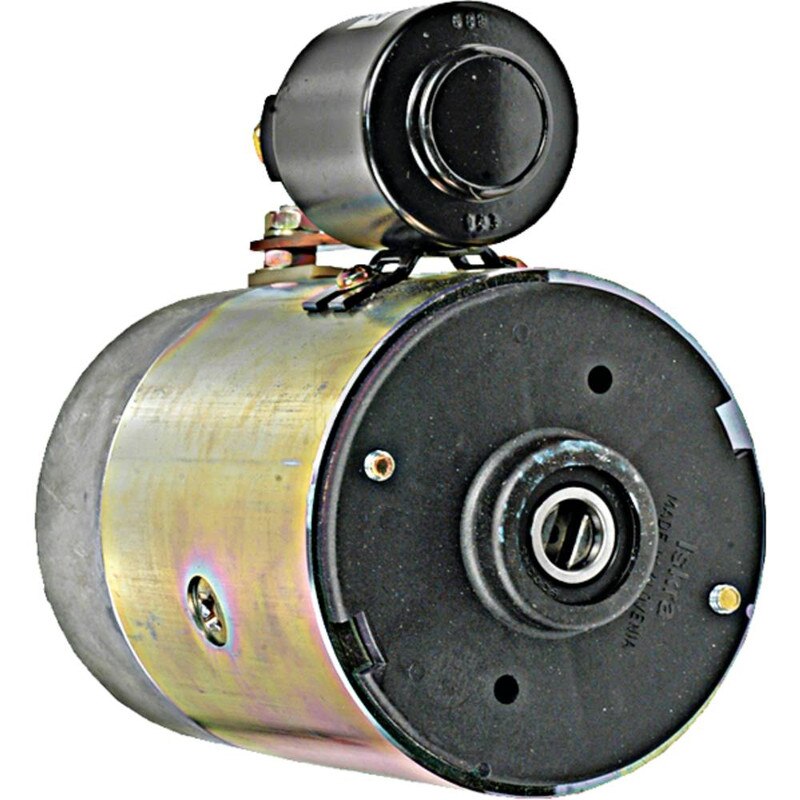

24V Hydraulic Motor CCW – 2.2kW 150A Slotted Shaft – Replaces MAH-MM307, AMJ4708, Z-EMDC2A-ACE-C
$789.86 $892.54
Specifications
| Specification | Value |
|---|---|
| Description | Hydraulic Motor |
| Current Type | DC |
| Voltage | 24 |
| Power | 2.2 kW / 2.95 HP |
| Amps | 150 |
| Rotation | CCW |
| OD | 4.512 in / 114.6 mm |
| Shaft OD | 0.587 in / 14.9 mm |
| Length | 6.791 in / 172.5 mm |
| Terminal 1 Size | M8-1.25 |
| Terminal 2 Size | M8-1.25 |
| Shaft | 6.5mm Wide Slot |
| Notes | Includes Solenoid; Insulated Ground Motor |
