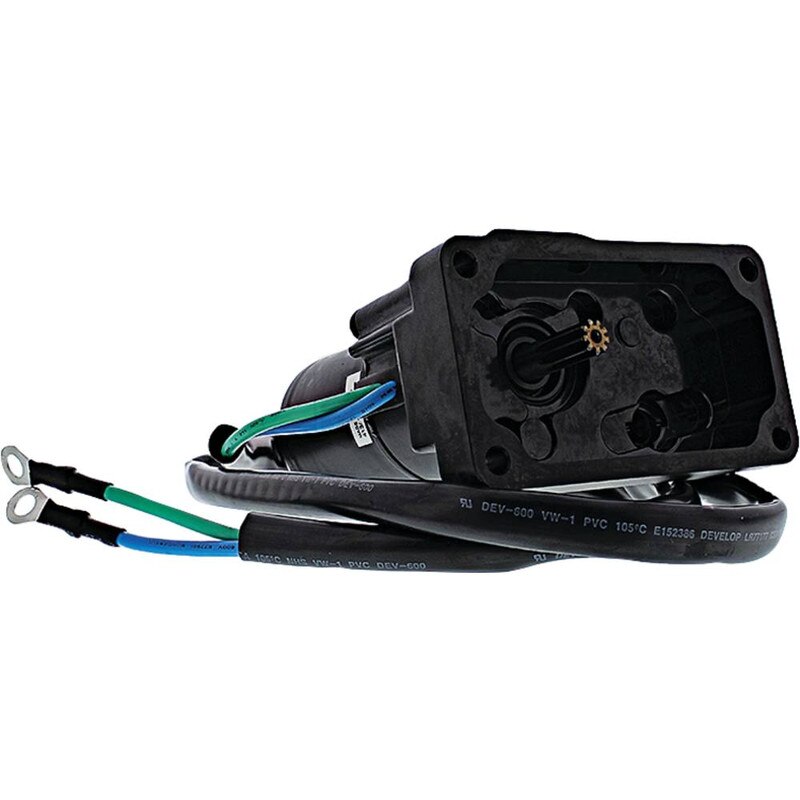

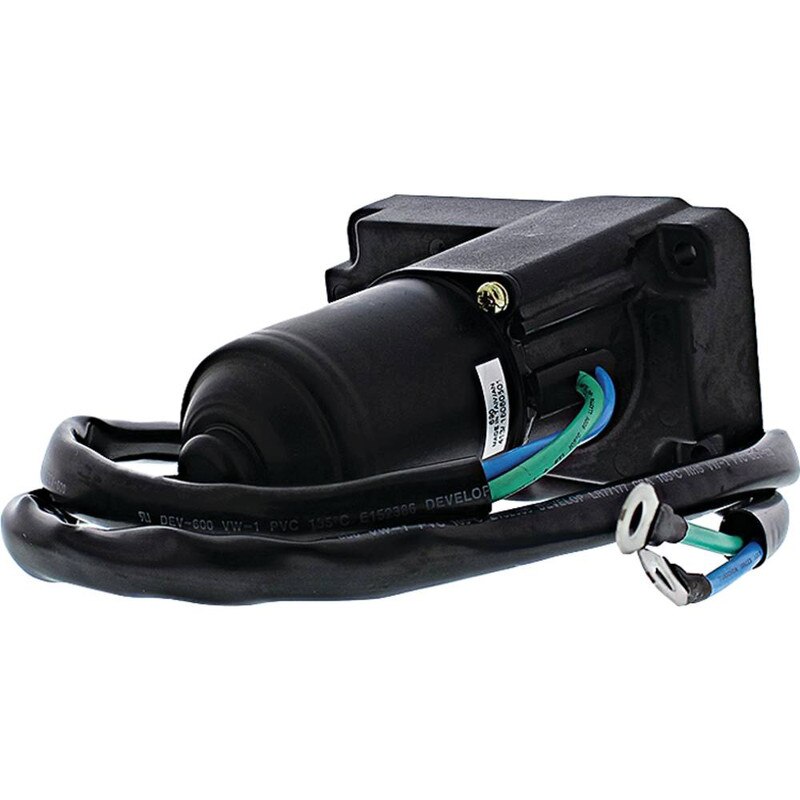

12V Tilt Trim Motor – Fits Yamaha T8 & T9.9 (2001-2017) – Replaces 430-22160, 69G43880-00-00, 69G43880-01, 69G43880-01-00
$223.67 $252.75
Specifications
| Specification | Value |
|---|---|
| Description | Tilt/Trim Motor |
| Application | 2006-On Yamaha 8HP & 9.9HP Outboard Engines |
| Current Type | DC |
| Voltage | 12 |
| Rotation | Reversible |
| OD | 1.858 in / 47.2 mm |
| Shaft OD | 0.343 in / 8.7 mm |
| Length | 5.295 in / 134.5 mm |
| Terminal 1 Size | 6.4mm ID Ring |
| Terminal 2 Size | 6.4mm ID Ring |
| Shaft | 9 Straight Splines |
