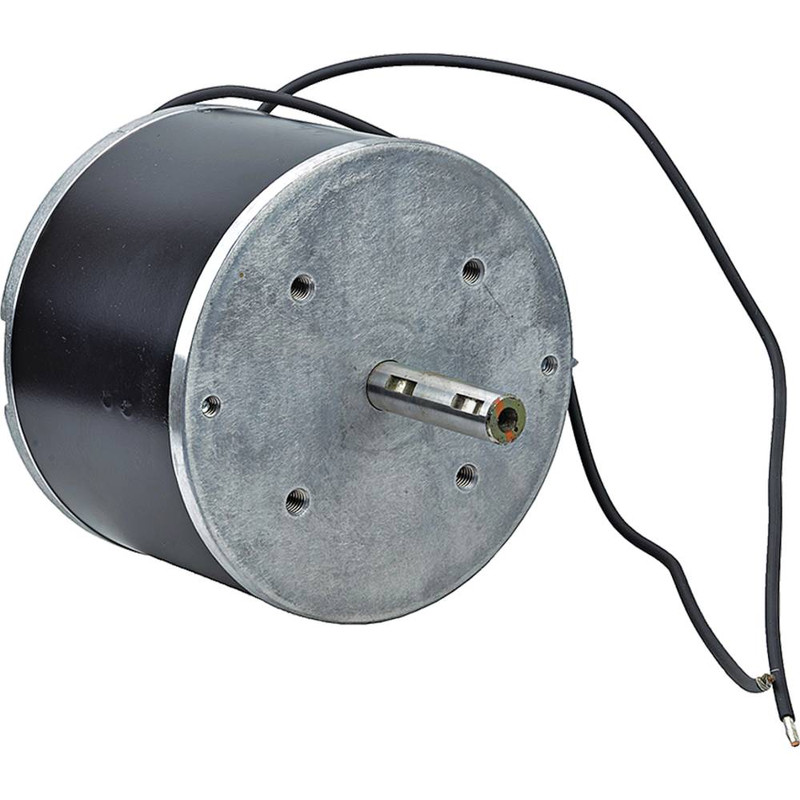

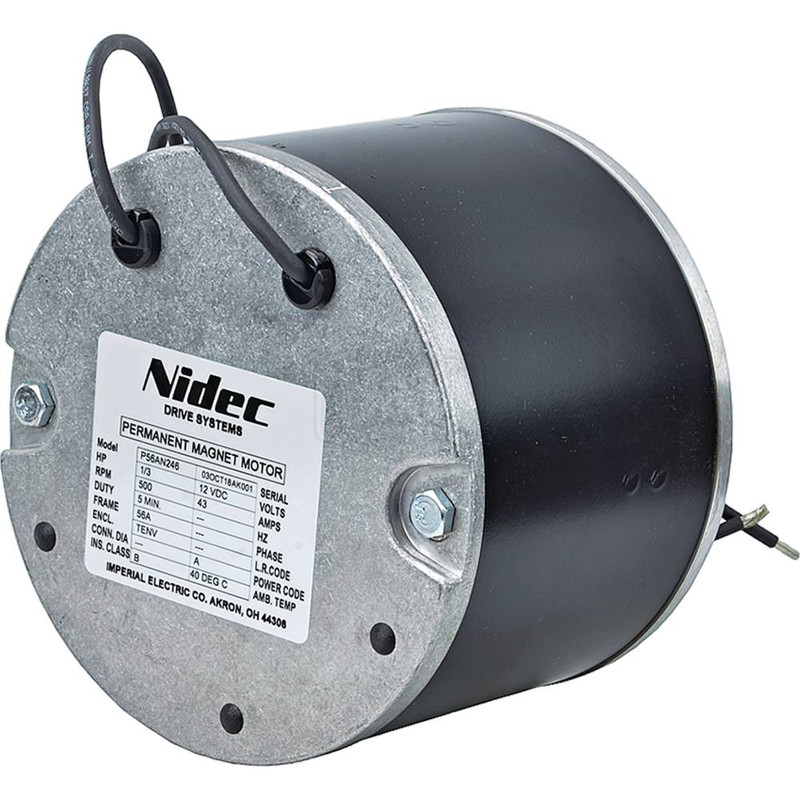

12V Reel Motor Reversible – Permanent Magnet – Fits Fire Truck & Utility Reel Applications – Replaces SCO-P56AN246, P56AN246
$604.23 $682.78
Specifications
| Attribute | Details |
|---|---|
| Description | Reel Motor |
| Application | Power Reels on Fire Trucks, Lawncare, Utility Trucks, and Stationary or Portable Reels |
| Current Type | DC |
| Voltage | 12 |
| Power | 0.2kW / 0.27HP |
| Amps | 43 |
| RPM | 500 |
| Field Type | Permanent Magnet |
| Rotation | Reversible |
| OD | 5.945in / 151mm |
| Shaft OD | 0.602in / 15.3mm |
| Terminal 1 Size | Wire |
| Terminal 2 Size | Wire |
| Shaft | (2) 4.8mm Woodruff Key Cutouts |
| Notes | Rugged, Dependable, Long Life Motor; Face or Base Mount in Any Direction; All Ball Bearing Construction |
