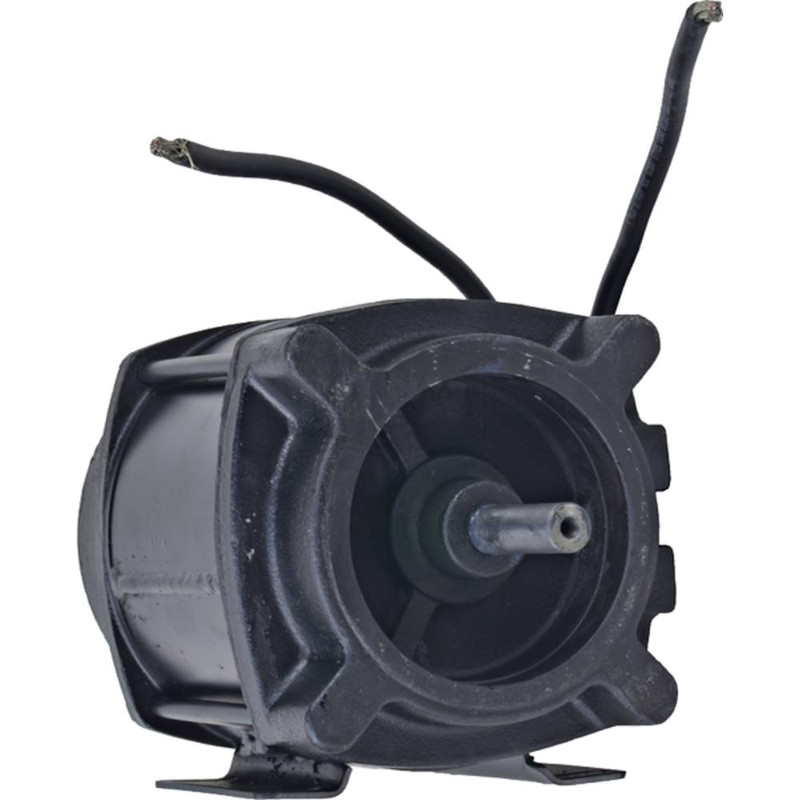

12V Reel Motor Reversible – Fits Hannay Reel & Fire Truck Applications – Replaces SCO-P56SX203, 9915.0014, P56SX003, P56SX103
$636.11 $718.80
Specifications
| Attribute | Details |
|---|---|
| Description | Reel Motor |
| Application | Fire Truck Applications |
| Current Type | DC |
| Voltage | 12 |
| Power | 0.5kW / 0.67HP |
| Amps | 75 |
| RPM | 500 |
| Rotation | Reversible |
| OD | 3.823in / 97.1mm |
| Shaft OD | 0.626in / 15.9mm |
| Length | 10.157in / 258mm |
| Terminal 1 Size | Wire |
| Terminal 2 Size | Wire |
| Shaft | Keyway |
