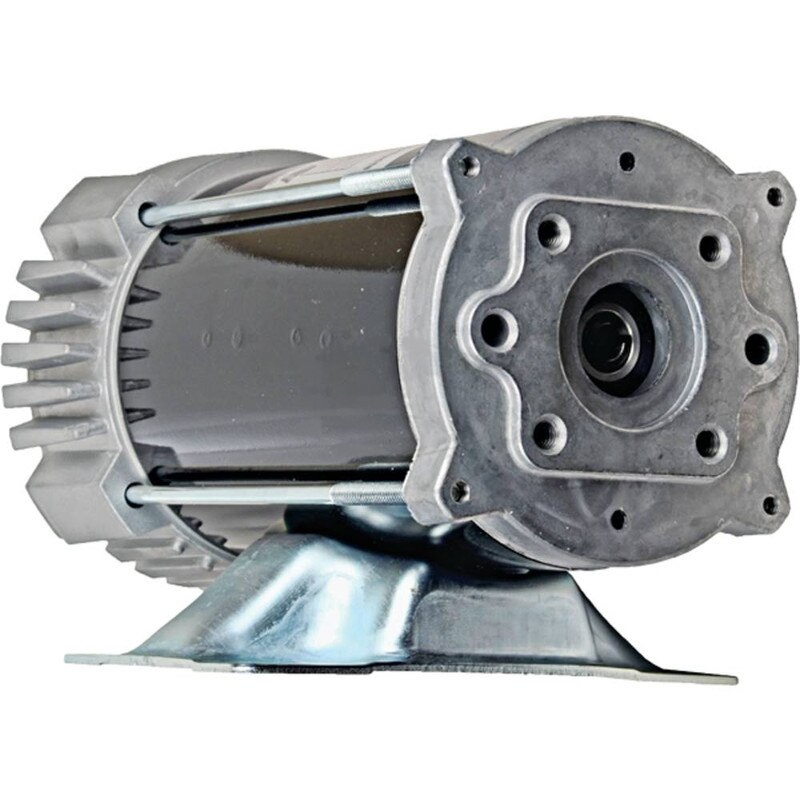

12V Pump Motor Reversible – Replaces SCO-4BC0781, 4BC00781, 4BC0781
$2,215.26 $2,503.24
Specifications
| Attribute | Details |
|---|---|
| Description | Pump Motor |
| Application | – |
| Current Type | DC |
| Voltage | 12 |
| Power | 1.49kW / 2HP |
| Amps | 160 |
| RPM | 3250 |
| Field Type | Permanent Magnet |
| Rotation | Reversible |
| OD | 5.882in / 149.4mm |
| Shaft OD | 0.587in / 14.9mm |
| Length | 9.299in / 236.2mm |
| Terminal 1 Size | 5/16-24 |
| Terminal 2 Size | 5/16-24 |
| Shaft | 6.4mm Slotted |
| Notes | (4) 5/16-18 Threaded Holes in DE Housing |
