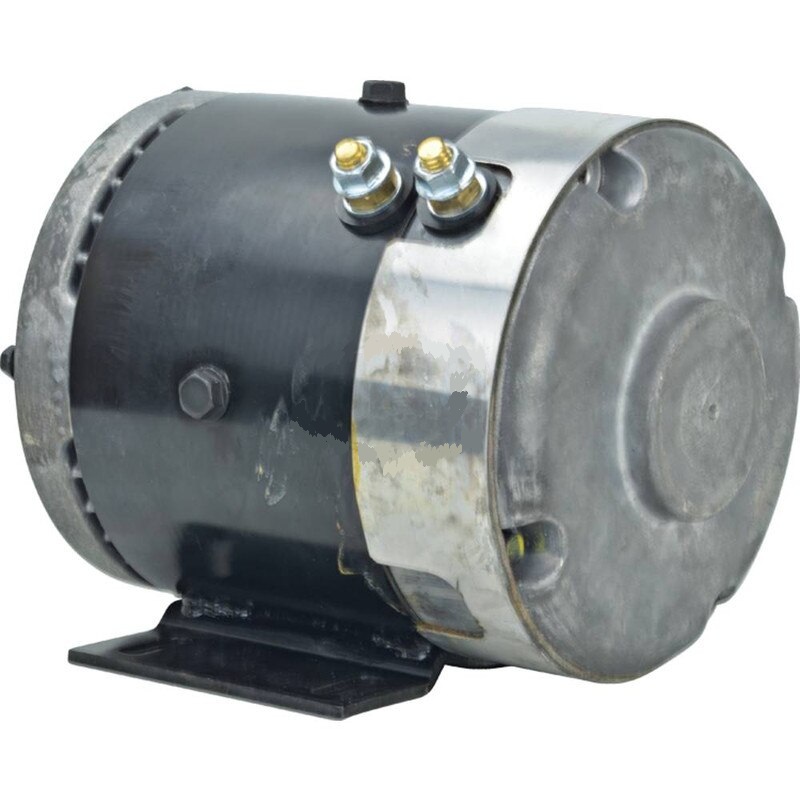

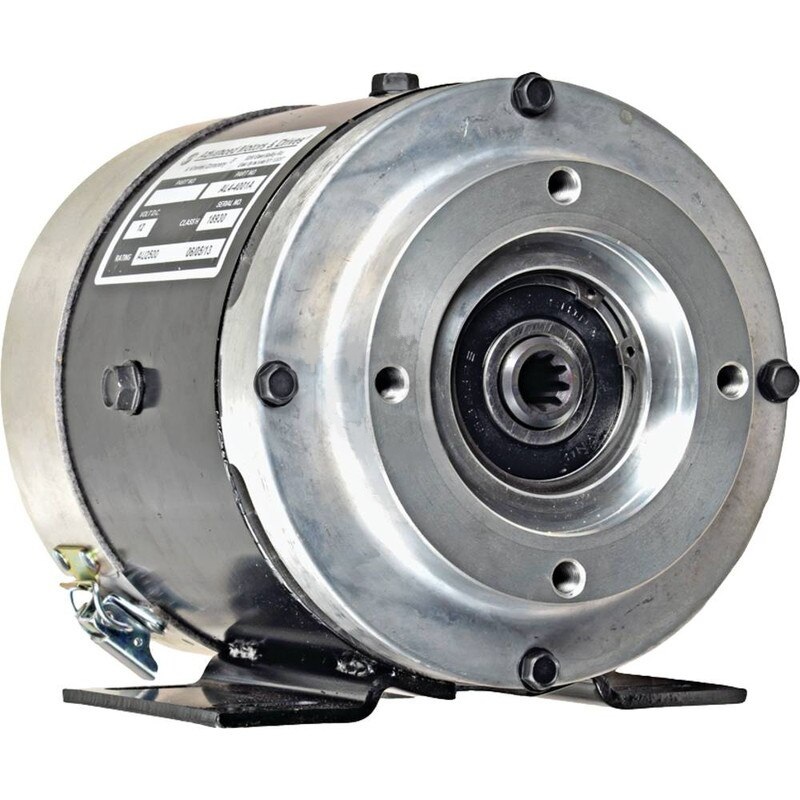

12V Pump Motor CW – Replaces AMD-AL4-4001AMX, L4-4001A, AL4-4001AMX
$1,856.44 $2,097.78
Specifications
| Attribute | Details |
|---|---|
| Description | Pump Motor |
| Application | – |
| Current Type | DC |
| Voltage | 12 |
| Power | 2.5kW / 3.35HP |
| Amps | 310 |
| RPM | 1610 |
| Field Type | Series |
| Rotation | CW |
| OD | 6.642in / 168.7mm |
| Shaft OD | 0.984in / 25mm |
| Length | 8.85in / 224.8mm |
| Terminal 1 Size | M10-1.5 |
| Terminal 2 Size | M10-1.5 |
| Shaft | 9 Internal Spline |
| Notes | (4) 3/8-24 Threaded Attaching Holes in DE Housing |
