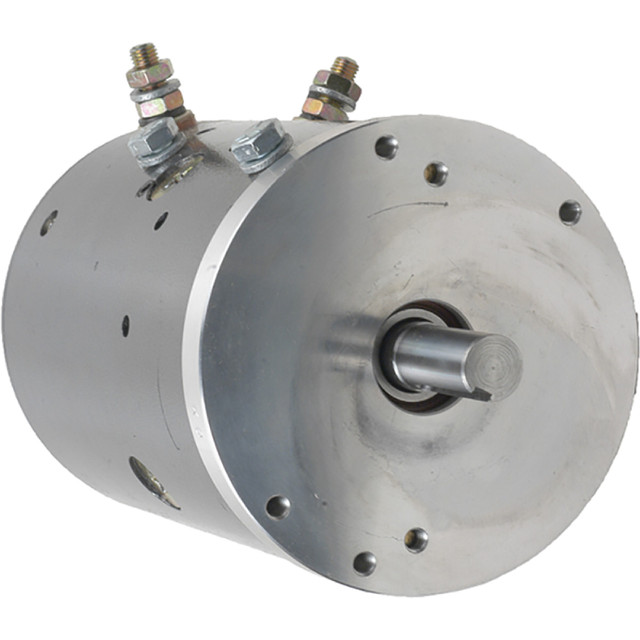

12V Pump Motor CW – Fits Monarch & Nu Star – Replaces 430-20049, 8076, MDT6029S, 10719
$728.51 $823.22
Lester: 10719
Specifications
| Attribute | Details |
|---|---|
| Description | Pump Motor |
| Application | Monarch & Nu Star Applications |
| Current Type | DC |
| Voltage | 12 |
| Rotation | CW |
| OD | 4.488in / 114mm |
| Shaft OD | 0.626in / 15.9mm |
| Length | 8.346in / 212mm |
| Terminal 1 Size | 5/16-24 |
| Terminal 2 Size | 5/16-24 |
| Shaft | 4.6mm x 33mm Keyway |
| Notes | Double Ball Bearing |
