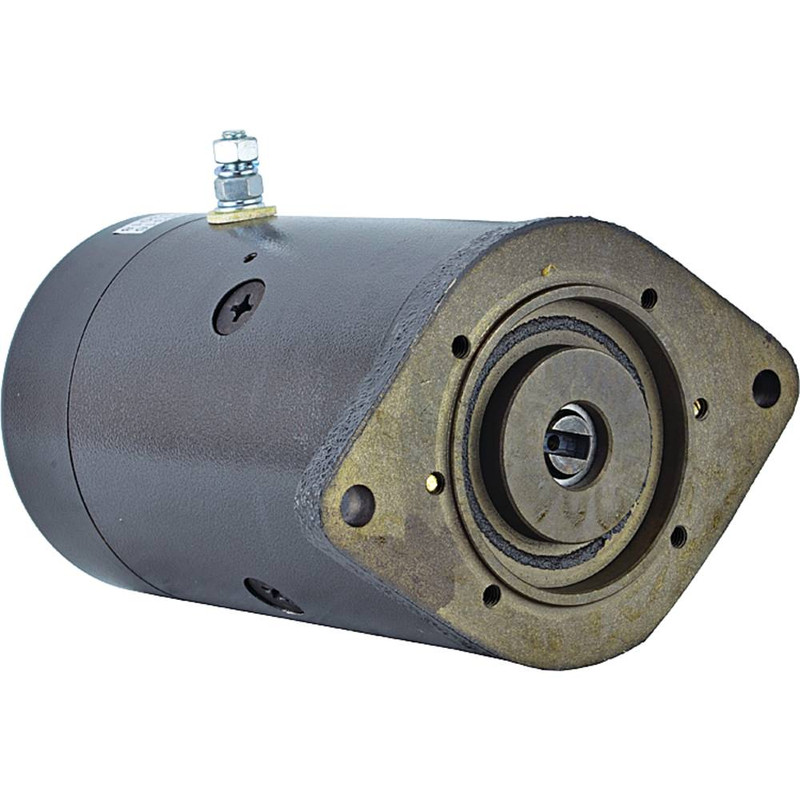

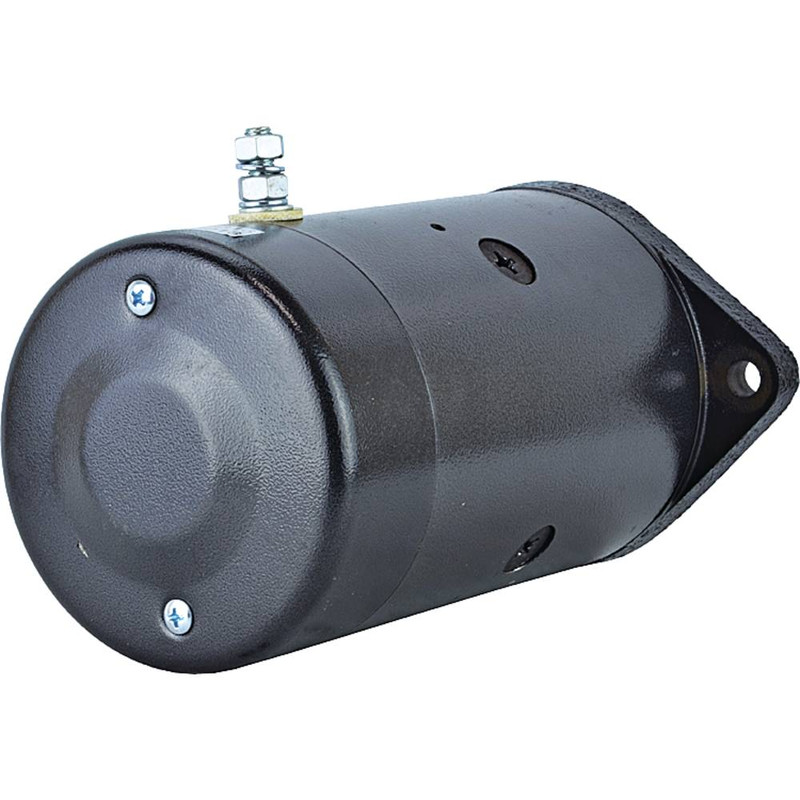

12V Pump Motor CW – Fits Hale Pump Applications – Replaces 430-20082, 46-3663, MCL6201, MCL6201S, 5074
$245.34 $277.23
Lester: 5074
Specifications
| Attribute | Details |
|---|---|
| Description | Pump Motor |
| Application | Hale Pump Applications |
| Current Type | DC |
| Voltage | 12 |
| Power | 2.54kW / 3.4HP |
| Number of Fields | 4 |
| Field Type | Series |
| Rotation | CW |
| OD | 4.5in / 114.3mm |
| Shaft OD | 0.622in / 15.8mm |
| Length | 7.677in / 195mm |
| Terminal 1 Size | 5/16-18 |
| Terminal 2 Size | 5/16-18 |
| Shaft | 6.2mm Slot |
| Notes | (2) 10.4mm Mounting Holes 139.8mm on Center |
