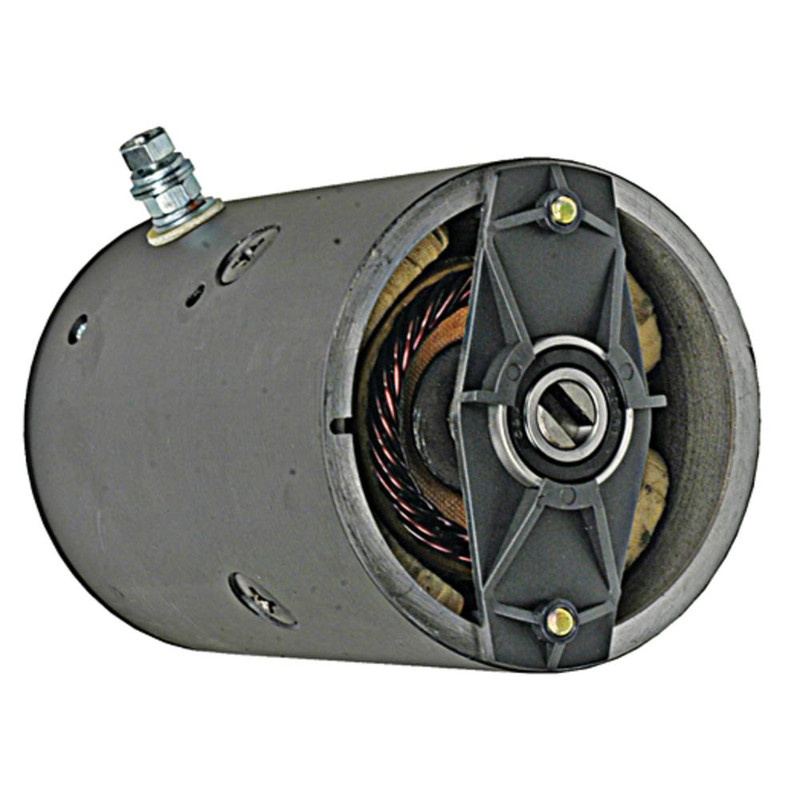

12V Pump Motor CCW – Fits Monarch, J.S. Barnes & Boss Snow Plow – Replaces 430-20028, 46-2107, 46-2369, MUE6104
$179.79 $203.16
Lester: 10753, 10781, 6033, 6034, 6119, 6121
Specifications
| Attribute | Details |
|---|---|
| Description | Pump Motor |
| Application | John S. Barnes, Monarch, Waltco Hydraulic Applications & Boss Snow Plow Applications |
| Current Type | DC |
| Voltage | 12 |
| Power | 1.7kW / 2.28HP |
| Number of Fields | 4 |
| Rotation | CCW |
| OD | 4.5in / 114.3mm |
| Shaft OD | 0.591in / 15mm |
| Length | 7.236in / 183.8mm |
| Terminal 1 Size | 5/16-24 |
| Shaft | Slotted |
| Notes | Single Ball Bearing; Thru Bolts at 11:00 & 5:00 With Motor Stud at 12:00 |
