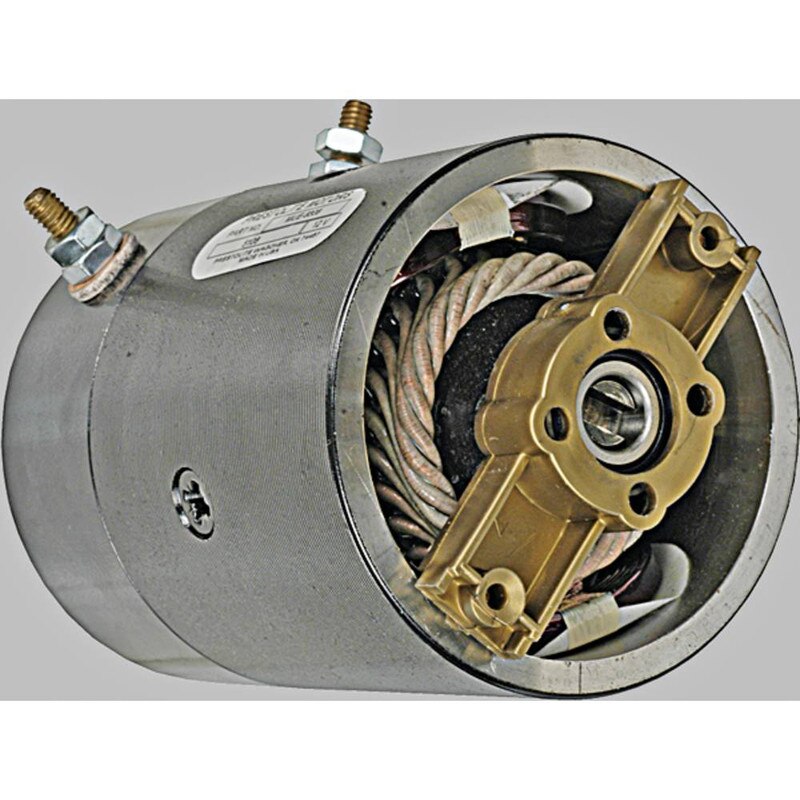

12V Hydraulic Motor CCW – 2.54kW Series Slotted Shaft – Replaces PRL-MUE6308, 39200475
$283.97 $320.89
Specifications
| Specification | Value |
|---|---|
| Description | Hydraulic Motor |
| Application | Hydraulic Motor Applications |
| Current Type | DC |
| Voltage | 12 |
| Power | 2.54 kW / 3.4 HP |
| Number of Fields | 4 |
| Field Type | Series |
| Rotation | CCW |
| OD | 4.5 in / 114.3 mm |
| Shaft OD | 0.591 in / 15 mm |
| Length | 6.815 in / 173.1 mm |
| Terminal 1 Size | 5/16-18 |
| Terminal 2 Size | 5/16-18 |
| Shaft | 6.4mm Wide Slot |
